activiti-7.1.0.M6适配人大金仓数据库

Tang 发布于

最后更新于

字数: 3.3k字 | 阅读时间: 19分

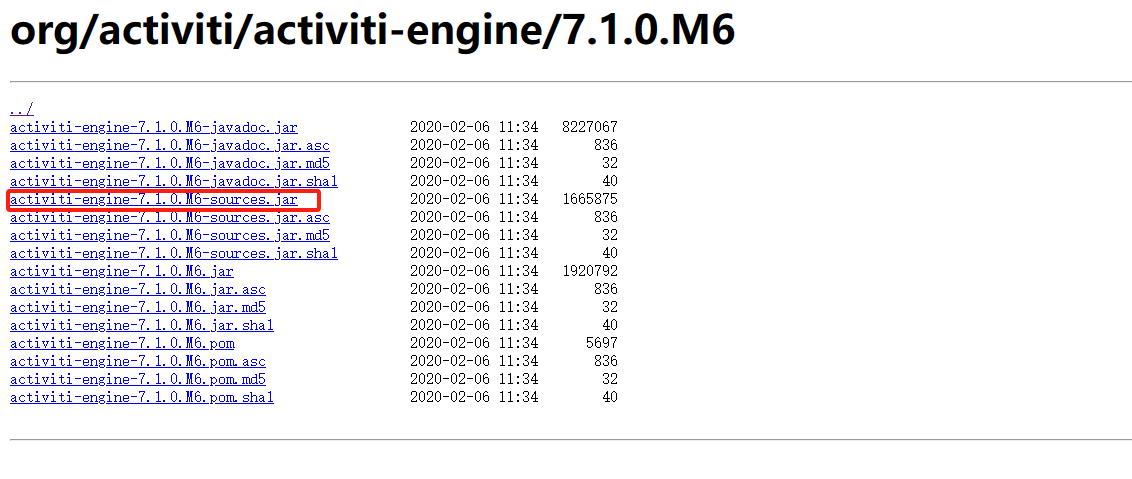

1.下载activiti-7.1.0.M6的源码包

2.打开方式

  • 把下载的jar包解压之后，进入activiti-engine-7.1.0.M6-sources\META-INF\maven\org.activiti\activiti-engine目录下将pom文件拷贝到activiti-engine-7.1.0.M6-sources下，与org文件夹同目录下，然后把META-INF文件夹和源码的jar包一并删除。然后用idea打开工程文件（activiti-engine-7.1.0.M6-sources）。

2.1首次打开需修改工程文件的modules

  • 按步骤依次点击，File->Project Structure,按照如下图中步骤依次执行。

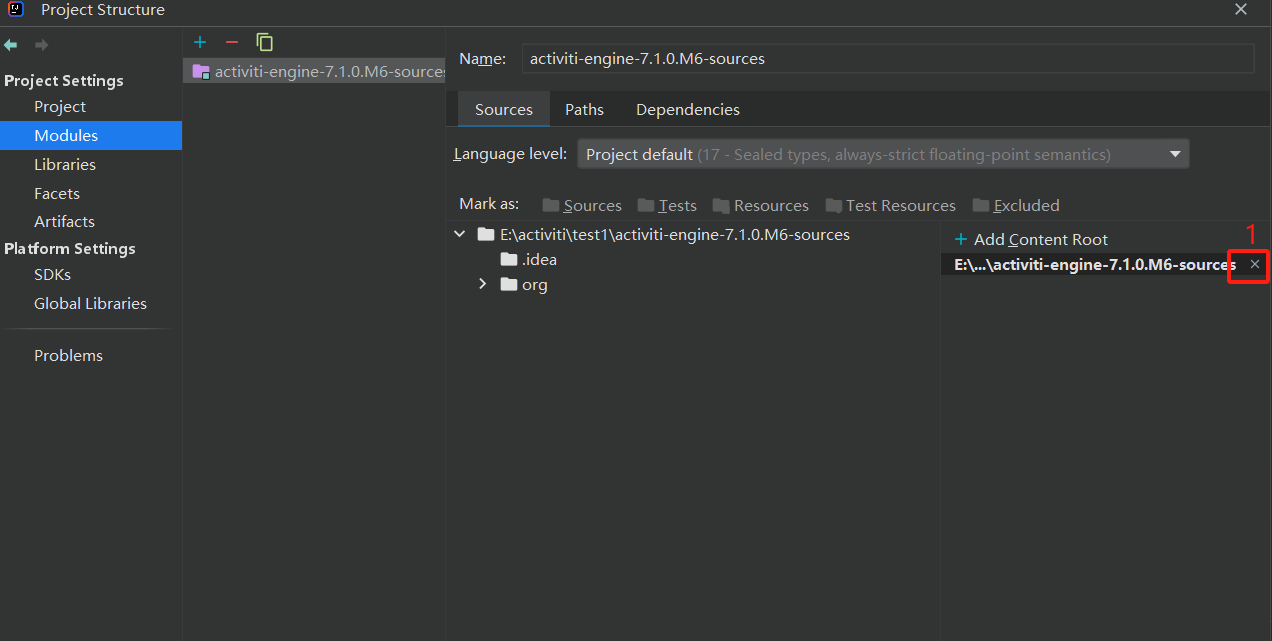

    点击红框中的×，清除
    点击红框中的×，清除

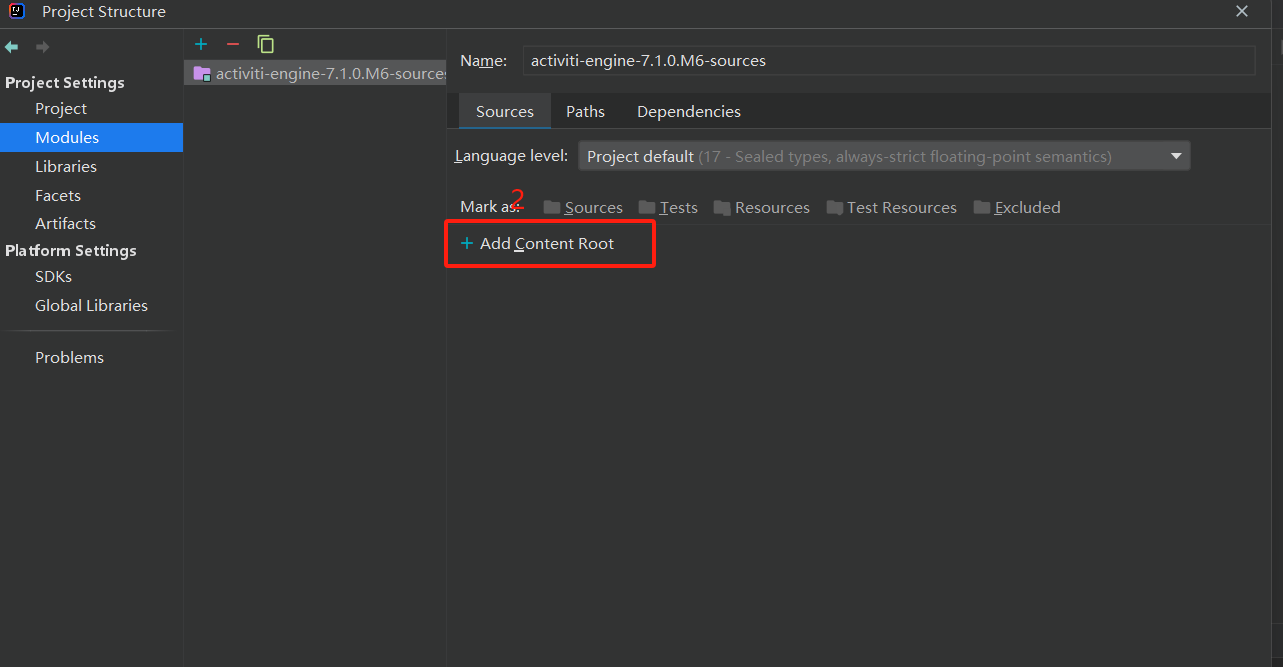

    点击红框中的+号，选择你这个工程文件根目录所在的位置
    点击红框中的+号，选择你这个工程文件根目录所在的位置

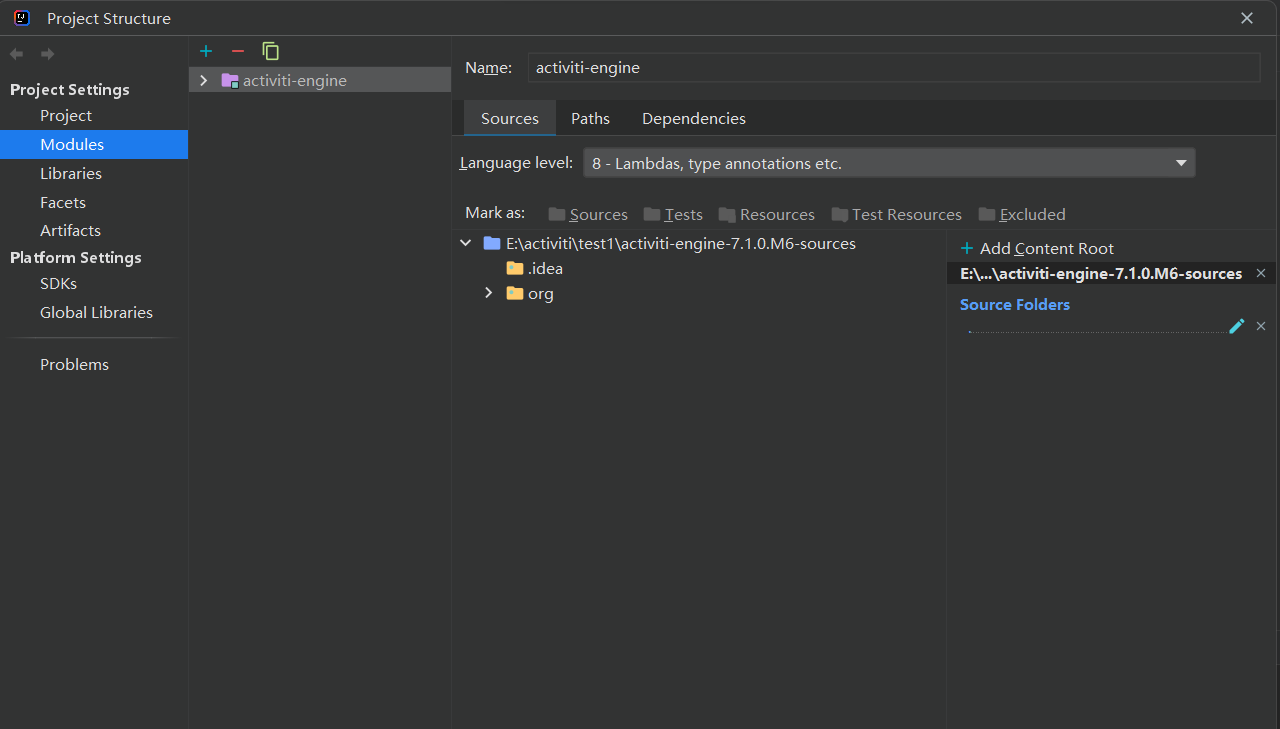

    这是最后配好的界面
    这是最后配好的界面

3.修改部分源码（添加国产数据库类型）

3.1在 org.activiti.engine.impl.cfg.ProcessEngineConfigurationImpl，增加成员变量

1
2
3
4
5
6
7
8
9
10
protected static Properties databaseTypeMappings = getDefaultDatabaseTypeMappings();

  public static final String DATABASE_TYPE_H2 = "h2";
  public static final String DATABASE_TYPE_HSQL = "hsql";
  public static final String DATABASE_TYPE_MYSQL = "mysql";
  public static final String DATABASE_TYPE_ORACLE = "oracle";
  public static final String DATABASE_TYPE_POSTGRES = "postgres";
  public static final String DATABASE_TYPE_MSSQL = "mssql";
  public static final String DATABASE_TYPE_DB2 = "db2";
  public static final String DATABASE_TYPE_KINGBASE = "kingbase";//金仓

3.2修改org.activiti.engine.impl.cfg.ProcessEngineConfigurationImpl 类的getDefaultDatabaseTypeMappings()方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
public static Properties getDefaultDatabaseTypeMappings() {
    Properties databaseTypeMappings = new Properties();
    databaseTypeMappings.setProperty("kingbase", DATABASE_TYPE_KINGBASE);//金仓
    databaseTypeMappings.setProperty("H2", DATABASE_TYPE_H2);
    databaseTypeMappings.setProperty("HSQL Database Engine", DATABASE_TYPE_HSQL);
    databaseTypeMappings.setProperty("MySQL", DATABASE_TYPE_MYSQL);
    databaseTypeMappings.setProperty("Oracle", DATABASE_TYPE_ORACLE);
    databaseTypeMappings.setProperty("PostgreSQL", DATABASE_TYPE_POSTGRES);
    databaseTypeMappings.setProperty("Microsoft SQL Server", DATABASE_TYPE_MSSQL);
    databaseTypeMappings.setProperty(DATABASE_TYPE_DB2, DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2",DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/NT", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/NT64", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2 UDP", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/LINUX", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/LINUX390", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/LINUXX8664", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/LINUXZ64", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/LINUXPPC64",DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/LINUXPPC64LE",DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/400 SQL", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/6000", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2 UDB iSeries", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/AIX64", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/HPUX", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/HP64", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/SUN", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/SUN64", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/PTX", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2/2", DATABASE_TYPE_DB2);
    databaseTypeMappings.setProperty("DB2 UDB AS400", DATABASE_TYPE_DB2);
    return databaseTypeMappings;
  }

3.3修改org.activiti.engine.impl.AbstractQuery 类的 addOrder(String column, String sortOrder, NullHandlingOnOrder nullHandlingOnOrder)方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
protected void addOrder(String column, String sortOrder, NullHandlingOnOrder nullHandlingOnOrder) {

  if (orderBy == null) {
    orderBy = "";
  } else {
    orderBy = orderBy + ", ";
  }

  String defaultOrderByClause = column + " " + sortOrder;

  if (nullHandlingOnOrder != null) {

    if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_FIRST)) {

      if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_KINGBASE.equals(databaseType)//金仓
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_DM.equals(databaseType) ) {//达梦
        orderBy = orderBy + defaultOrderByClause + " NULLS FIRST";
      } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {
        orderBy = orderBy + "isnull(" + column + ") desc," + defaultOrderByClause;
      } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType) || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {
        orderBy = orderBy + "case when " + column + " is null then 0 else 1 end," + defaultOrderByClause;
      } else {
        orderBy = orderBy + defaultOrderByClause;
      }

    } else if (nullHandlingOnOrder.equals(NullHandlingOnOrder.NULLS_LAST)) {

      if (ProcessEngineConfigurationImpl.DATABASE_TYPE_H2.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_HSQL.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_POSTGRES.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_ORACLE.equals(databaseType)
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_KINGBASE.equals(databaseType)//金仓
              || ProcessEngineConfigurationImpl.DATABASE_TYPE_DM.equals(databaseType) )  {//达梦
        orderBy = orderBy + column + " " + sortOrder + " NULLS LAST";
      } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_MYSQL.equals(databaseType)) {
        orderBy = orderBy + "isnull(" + column + ") asc," + defaultOrderByClause;
      } else if (ProcessEngineConfigurationImpl.DATABASE_TYPE_DB2.equals(databaseType) || ProcessEngineConfigurationImpl.DATABASE_TYPE_MSSQL.equals(databaseType)) {
        orderBy = orderBy + "case when " + column + " is null then 1 else 0 end," + defaultOrderByClause;
      } else {
        orderBy = orderBy + defaultOrderByClause;
      }

    }

  } else {
    orderBy = orderBy + defaultOrderByClause;
  }

}

4.在db.create文件夹下创建数据库表相关的文件

4.1在create文件夹下创建数据库表相关的文件activiti.kingbase.create.engine.sql

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
create table ACT_GE_PROPERTY
(
    NAME_  varchar(64),
    VALUE_ varchar(300),
    REV_   integer,
    primary key (NAME_)
);

insert into ACT_GE_PROPERTY
values ('schema.version', '7.1.0.M6', 1);

insert into ACT_GE_PROPERTY
values ('schema.history', 'create(7.1.0.M6)', 1);

insert into ACT_GE_PROPERTY
values ('next.dbid', '1', 1);

create table ACT_GE_BYTEARRAY
(
    ID_            varchar(64),
    REV_           integer,
    NAME_          varchar(255),
    DEPLOYMENT_ID_ varchar(64),
    BYTES_         bytea,
    GENERATED_     boolean,
    primary key (ID_)
);

create table ACT_RE_DEPLOYMENT
(
    ID_             varchar(64),
    NAME_           varchar(255),
    CATEGORY_       varchar(255),
    KEY_            varchar(255),
    TENANT_ID_      varchar(255) default '',
    DEPLOY_TIME_    timestamp,
    ENGINE_VERSION_ varchar(255),
    VERSION_ integer,
    PROJECT_RELEASE_VERSION_ varchar(255),
    primary key (ID_)
);

create table ACT_RE_MODEL
(
    ID_                           varchar(64) not null,
    REV_                          integer,
    NAME_                         varchar(255),
    KEY_                          varchar(255),
    CATEGORY_                     varchar(255),
    CREATE_TIME_                  timestamp,
    LAST_UPDATE_TIME_             timestamp,
    VERSION_                      integer,
    META_INFO_                    varchar(4000),
    DEPLOYMENT_ID_                varchar(64),
    EDITOR_SOURCE_VALUE_ID_       varchar(64),
    EDITOR_SOURCE_EXTRA_VALUE_ID_ varchar(64),
    TENANT_ID_                    varchar(255) default '',
    primary key (ID_)
);

create table ACT_RU_EXECUTION
(
    ID_                   varchar(64),
    REV_                  integer,
    PROC_INST_ID_         varchar(64),
    BUSINESS_KEY_         varchar(255),
    PARENT_ID_            varchar(64),
    PROC_DEF_ID_          varchar(64),
    SUPER_EXEC_           varchar(64),
    ROOT_PROC_INST_ID_    varchar(64),
    ACT_ID_               varchar(255),
    IS_ACTIVE_            boolean,
    IS_CONCURRENT_        boolean,
    IS_SCOPE_             boolean,
    IS_EVENT_SCOPE_       boolean,
    IS_MI_ROOT_           boolean,
    SUSPENSION_STATE_     integer,
    CACHED_ENT_STATE_     integer,
    TENANT_ID_            varchar(255) default '',
    NAME_                 varchar(255),
    START_TIME_           timestamp,
    START_USER_ID_        varchar(255),
    LOCK_TIME_            timestamp,
    IS_COUNT_ENABLED_     boolean,
    EVT_SUBSCR_COUNT_     integer,
    TASK_COUNT_           integer,
    JOB_COUNT_            integer,
    TIMER_JOB_COUNT_      integer,
    SUSP_JOB_COUNT_       integer,
    DEADLETTER_JOB_COUNT_ integer,
    VAR_COUNT_            integer,
    ID_LINK_COUNT_        integer,
    primary key (ID_)
);

create table ACT_RU_JOB
(
    ID_                  varchar(64)  NOT NULL,
    REV_                 integer,
    TYPE_                varchar(255) NOT NULL,
    LOCK_EXP_TIME_       timestamp,
    LOCK_OWNER_          varchar(255),
    EXCLUSIVE_           boolean,
    EXECUTION_ID_        varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_         varchar(64),
    RETRIES_             integer,
    EXCEPTION_STACK_ID_  varchar(64),
    EXCEPTION_MSG_       varchar(4000),
    DUEDATE_             timestamp,
    REPEAT_              varchar(255),
    HANDLER_TYPE_        varchar(255),
    HANDLER_CFG_         varchar(4000),
    TENANT_ID_           varchar(255) default '',
    primary key (ID_)
);

create table ACT_RU_TIMER_JOB
(
    ID_                  varchar(64)  NOT NULL,
    REV_                 integer,
    TYPE_                varchar(255) NOT NULL,
    LOCK_EXP_TIME_       timestamp,
    LOCK_OWNER_          varchar(255),
    EXCLUSIVE_           boolean,
    EXECUTION_ID_        varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_         varchar(64),
    RETRIES_             integer,
    EXCEPTION_STACK_ID_  varchar(64),
    EXCEPTION_MSG_       varchar(4000),
    DUEDATE_             timestamp,
    REPEAT_              varchar(255),
    HANDLER_TYPE_        varchar(255),
    HANDLER_CFG_         varchar(4000),
    TENANT_ID_           varchar(255) default '',
    primary key (ID_)
);

create table ACT_RU_SUSPENDED_JOB
(
    ID_                  varchar(64)  NOT NULL,
    REV_                 integer,
    TYPE_                varchar(255) NOT NULL,
    EXCLUSIVE_           boolean,
    EXECUTION_ID_        varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_         varchar(64),
    RETRIES_             integer,
    EXCEPTION_STACK_ID_  varchar(64),
    EXCEPTION_MSG_       varchar(4000),
    DUEDATE_             timestamp,
    REPEAT_              varchar(255),
    HANDLER_TYPE_        varchar(255),
    HANDLER_CFG_         varchar(4000),
    TENANT_ID_           varchar(255) default '',
    primary key (ID_)
);

create table ACT_RU_DEADLETTER_JOB
(
    ID_                  varchar(64)  NOT NULL,
    REV_                 integer,
    TYPE_                varchar(255) NOT NULL,
    EXCLUSIVE_           boolean,
    EXECUTION_ID_        varchar(64),
    PROCESS_INSTANCE_ID_ varchar(64),
    PROC_DEF_ID_         varchar(64),
    EXCEPTION_STACK_ID_  varchar(64),
    EXCEPTION_MSG_       varchar(4000),
    DUEDATE_             timestamp,
    REPEAT_              varchar(255),
    HANDLER_TYPE_        varchar(255),
    HANDLER_CFG_         varchar(4000),
    TENANT_ID_           varchar(255) default '',
    primary key (ID_)
);

create table ACT_RE_PROCDEF
(
    ID_                     varchar(64)  NOT NULL,
    REV_                    integer,
    CATEGORY_               varchar(255),
    NAME_                   varchar(255),
    KEY_                    varchar(255) NOT NULL,
    VERSION_                integer      NOT NULL,
    DEPLOYMENT_ID_          varchar(64),
    RESOURCE_NAME_          varchar(4000),
    DGRM_RESOURCE_NAME_     varchar(4000),
    DESCRIPTION_            varchar(4000),
    HAS_START_FORM_KEY_     boolean,
    HAS_GRAPHICAL_NOTATION_ boolean,
    SUSPENSION_STATE_       integer,
    TENANT_ID_              varchar(255) default '',
    ENGINE_VERSION_         varchar(255),
    APP_VERSION_ integer,
    primary key (ID_)
);

create table ACT_RU_TASK
(
    ID_               varchar(64),
    REV_              integer,
    EXECUTION_ID_     varchar(64),
    PROC_INST_ID_     varchar(64),
    PROC_DEF_ID_      varchar(64),
    NAME_             varchar(255),
    PARENT_TASK_ID_   varchar(64),
    DESCRIPTION_      varchar(4000),
    TASK_DEF_KEY_     varchar(255),
    OWNER_            varchar(255),
    ASSIGNEE_         varchar(255),
    DELEGATION_       varchar(64),
    PRIORITY_         integer,
    CREATE_TIME_      timestamp,
    DUE_DATE_         timestamp,
    CATEGORY_         varchar(255),
    SUSPENSION_STATE_ integer,
    TENANT_ID_        varchar(255) default '',
    FORM_KEY_         varchar(255),
    CLAIM_TIME_       timestamp,
    primary key (ID_)
);

create table ACT_RU_IDENTITYLINK
(
    ID_           varchar(64),
    REV_          integer,
    GROUP_ID_     varchar(255),
    TYPE_         varchar(255),
    USER_ID_      varchar(255),
    TASK_ID_      varchar(64),
    PROC_INST_ID_ varchar(64),
    PROC_DEF_ID_  varchar(64),
    primary key (ID_)
);

create table ACT_RU_VARIABLE
(
    ID_           varchar(64)  not null,
    REV_          integer,
    TYPE_         varchar(255) not null,
    NAME_         varchar(255) not null,
    EXECUTION_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    TASK_ID_      varchar(64),
    BYTEARRAY_ID_ varchar(64),
    DOUBLE_       double precision,
    LONG_         bigint,
    TEXT_         varchar(4000),
    TEXT2_        varchar(4000),
    primary key (ID_)
);

create table ACT_RU_EVENT_SUBSCR
(
    ID_            varchar(64)  not null,
    REV_           integer,
    EVENT_TYPE_    varchar(255) not null,
    EVENT_NAME_    varchar(255),
    EXECUTION_ID_  varchar(64),
    PROC_INST_ID_  varchar(64),
    ACTIVITY_ID_   varchar(64),
    CONFIGURATION_ varchar(255),
    CREATED_       timestamp    not null,
    PROC_DEF_ID_   varchar(64),
    TENANT_ID_     varchar(255) default '',
    primary key (ID_)
);

create table ACT_EVT_LOG
(
    LOG_NR_       SERIAL PRIMARY KEY,
    TYPE_         varchar(64),
    PROC_DEF_ID_  varchar(64),
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    TASK_ID_      varchar(64),
    TIME_STAMP_   timestamp not null,
    USER_ID_      varchar(255),
    DATA_         bytea,
    LOCK_OWNER_   varchar(255),
    LOCK_TIME_    timestamp null,
    IS_PROCESSED_ smallint default 0
);

create table ACT_PROCDEF_INFO
(
    ID_           varchar(64) not null,
    PROC_DEF_ID_  varchar(64) not null,
    REV_          integer,
    INFO_JSON_ID_ varchar(64),
    primary key (ID_)
);

create table ACT_RU_INTEGRATION (
                                    ID_ varchar(64) not null,
                                    EXECUTION_ID_ varchar(64),
                                    PROCESS_INSTANCE_ID_ varchar(64),
                                    PROC_DEF_ID_ varchar(64),
                                    FLOW_NODE_ID_ varchar(64),
                                    CREATED_DATE_ timestamp,
                                    primary key (ID_)
);

create index ACT_IDX_EXEC_BUSKEY on ACT_RU_EXECUTION (BUSINESS_KEY_);
create index ACT_IDX_EXE_ROOT on ACT_RU_EXECUTION (ROOT_PROC_INST_ID_);
create index ACT_IDX_TASK_CREATE on ACT_RU_TASK (CREATE_TIME_);
create index ACT_IDX_IDENT_LNK_USER on ACT_RU_IDENTITYLINK (USER_ID_);
create index ACT_IDX_IDENT_LNK_GROUP on ACT_RU_IDENTITYLINK (GROUP_ID_);
create index ACT_IDX_EVENT_SUBSCR_CONFIG_ on ACT_RU_EVENT_SUBSCR (CONFIGURATION_);
create index ACT_IDX_VARIABLE_TASK_ID on ACT_RU_VARIABLE (TASK_ID_);

create index ACT_IDX_BYTEAR_DEPL on ACT_GE_BYTEARRAY (DEPLOYMENT_ID_);
alter table ACT_GE_BYTEARRAY
    add constraint ACT_FK_BYTEARR_DEPL
        foreign key (DEPLOYMENT_ID_)
            references ACT_RE_DEPLOYMENT (ID_);

alter table ACT_RE_PROCDEF
    add constraint ACT_UNIQ_PROCDEF
        unique (KEY_, VERSION_, TENANT_ID_);

create index ACT_IDX_EXE_PROCINST on ACT_RU_EXECUTION (PROC_INST_ID_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PROCINST
        foreign key (PROC_INST_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_EXE_PARENT on ACT_RU_EXECUTION (PARENT_ID_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PARENT
        foreign key (PARENT_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_EXE_SUPER on ACT_RU_EXECUTION (SUPER_EXEC_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_SUPER
        foreign key (SUPER_EXEC_)
            references ACT_RU_EXECUTION (ID_);


create index ACT_IDX_EXE_PROCDEF on ACT_RU_EXECUTION (PROC_DEF_ID_);
alter table ACT_RU_EXECUTION
    add constraint ACT_FK_EXE_PROCDEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);


create index ACT_IDX_TSKASS_TASK on ACT_RU_IDENTITYLINK (TASK_ID_);
alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_TSKASS_TASK
        foreign key (TASK_ID_)
            references ACT_RU_TASK (ID_);

create index ACT_IDX_ATHRZ_PROCEDEF on ACT_RU_IDENTITYLINK (PROC_DEF_ID_);
alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_ATHRZ_PROCEDEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_IDL_PROCINST on ACT_RU_IDENTITYLINK (PROC_INST_ID_);
alter table ACT_RU_IDENTITYLINK
    add constraint ACT_FK_IDL_PROCINST
        foreign key (PROC_INST_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TASK_EXEC on ACT_RU_TASK (EXECUTION_ID_);
alter table ACT_RU_TASK
    add constraint ACT_FK_TASK_EXE
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TASK_PROCINST on ACT_RU_TASK (PROC_INST_ID_);
alter table ACT_RU_TASK
    add constraint ACT_FK_TASK_PROCINST
        foreign key (PROC_INST_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TASK_PROCDEF on ACT_RU_TASK (PROC_DEF_ID_);
alter table ACT_RU_TASK
    add constraint ACT_FK_TASK_PROCDEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_VAR_EXE on ACT_RU_VARIABLE (EXECUTION_ID_);
alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_EXE
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_VAR_PROCINST on ACT_RU_VARIABLE (PROC_INST_ID_);
alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_PROCINST
        foreign key (PROC_INST_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_VAR_BYTEARRAY on ACT_RU_VARIABLE (BYTEARRAY_ID_);
alter table ACT_RU_VARIABLE
    add constraint ACT_FK_VAR_BYTEARRAY
        foreign key (BYTEARRAY_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_JOB_EXECUTION_ID on ACT_RU_JOB (EXECUTION_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_EXECUTION
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_JOB_PROCESS_INSTANCE_ID on ACT_RU_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_PROCESS_INSTANCE
        foreign key (PROCESS_INSTANCE_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_JOB_PROC_DEF_ID on ACT_RU_JOB (PROC_DEF_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_PROC_DEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_JOB_EXCEPTION on ACT_RU_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_JOB
    add constraint ACT_FK_JOB_EXCEPTION
        foreign key (EXCEPTION_STACK_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_TIMER_JOB_EXECUTION_ID on ACT_RU_TIMER_JOB (EXECUTION_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_EXECUTION
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TIMER_JOB_PROCESS_INSTANCE_ID on ACT_RU_TIMER_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_PROCESS_INSTANCE
        foreign key (PROCESS_INSTANCE_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_TIMER_JOB_PROC_DEF_ID on ACT_RU_TIMER_JOB (PROC_DEF_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_PROC_DEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_TIMER_JOB_EXCEPTION on ACT_RU_TIMER_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_TIMER_JOB
    add constraint ACT_FK_TIMER_JOB_EXCEPTION
        foreign key (EXCEPTION_STACK_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_SUSPENDED_JOB_EXECUTION_ID on ACT_RU_SUSPENDED_JOB (EXECUTION_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_EXECUTION
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_SUSPENDED_JOB_PROCESS_INSTANCE_ID on ACT_RU_SUSPENDED_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_PROCESS_INSTANCE
        foreign key (PROCESS_INSTANCE_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_SUSPENDED_JOB_PROC_DEF_ID on ACT_RU_SUSPENDED_JOB (PROC_DEF_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_PROC_DEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_SUSPENDED_JOB_EXCEPTION on ACT_RU_SUSPENDED_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_SUSPENDED_JOB
    add constraint ACT_FK_SUSPENDED_JOB_EXCEPTION
        foreign key (EXCEPTION_STACK_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_DEADLETTER_JOB_EXECUTION_ID on ACT_RU_DEADLETTER_JOB (EXECUTION_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_EXECUTION
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_DEADLETTER_JOB_PROCESS_INSTANCE_ID on ACT_RU_DEADLETTER_JOB (PROCESS_INSTANCE_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_PROCESS_INSTANCE
        foreign key (PROCESS_INSTANCE_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_DEADLETTER_JOB_PROC_DEF_ID on ACT_RU_DEADLETTER_JOB (PROC_DEF_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_PROC_DEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

create index ACT_IDX_DEADLETTER_JOB_EXCEPTION on ACT_RU_DEADLETTER_JOB (EXCEPTION_STACK_ID_);
alter table ACT_RU_DEADLETTER_JOB
    add constraint ACT_FK_DEADLETTER_JOB_EXCEPTION
        foreign key (EXCEPTION_STACK_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_EVENT_SUBSCR on ACT_RU_EVENT_SUBSCR (EXECUTION_ID_);
alter table ACT_RU_EVENT_SUBSCR
    add constraint ACT_FK_EVENT_EXEC
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_);

create index ACT_IDX_MODEL_SOURCE on ACT_RE_MODEL (EDITOR_SOURCE_VALUE_ID_);
alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_SOURCE
        foreign key (EDITOR_SOURCE_VALUE_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_MODEL_SOURCE_EXTRA on ACT_RE_MODEL (EDITOR_SOURCE_EXTRA_VALUE_ID_);
alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_SOURCE_EXTRA
        foreign key (EDITOR_SOURCE_EXTRA_VALUE_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_MODEL_DEPLOYMENT on ACT_RE_MODEL (DEPLOYMENT_ID_);
alter table ACT_RE_MODEL
    add constraint ACT_FK_MODEL_DEPLOYMENT
        foreign key (DEPLOYMENT_ID_)
            references ACT_RE_DEPLOYMENT (ID_);

create index ACT_IDX_PROCDEF_INFO_JSON on ACT_PROCDEF_INFO (INFO_JSON_ID_);
alter table ACT_PROCDEF_INFO
    add constraint ACT_FK_INFO_JSON_BA
        foreign key (INFO_JSON_ID_)
            references ACT_GE_BYTEARRAY (ID_);

create index ACT_IDX_PROCDEF_INFO_PROC on ACT_PROCDEF_INFO (PROC_DEF_ID_);
alter table ACT_PROCDEF_INFO
    add constraint ACT_FK_INFO_PROCDEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

alter table ACT_PROCDEF_INFO
    add constraint ACT_UNIQ_INFO_PROCDEF
        unique (PROC_DEF_ID_);

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_EXECUTION
        foreign key (EXECUTION_ID_)
            references ACT_RU_EXECUTION (ID_)
            on delete cascade;

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_PROC_INST
        foreign key (PROCESS_INSTANCE_ID_)
            references ACT_RU_EXECUTION (ID_);

alter table ACT_RU_INTEGRATION
    add constraint ACT_FK_INT_PROC_DEF
        foreign key (PROC_DEF_ID_)
            references ACT_RE_PROCDEF (ID_);

4.2在create文件夹下创建数据库表相关的文件activiti.kingbase.create.history.sql

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
create table ACT_HI_PROCINST (
    ID_ varchar(64) not null,
    PROC_INST_ID_ varchar(64) not null,
    BUSINESS_KEY_ varchar(255),
    PROC_DEF_ID_ varchar(64) not null,
    START_TIME_ timestamp not null,
    END_TIME_ timestamp,
    DURATION_ bigint,
    START_USER_ID_ varchar(255),
    START_ACT_ID_ varchar(255),
    END_ACT_ID_ varchar(255),
    SUPER_PROCESS_INSTANCE_ID_ varchar(64),
    DELETE_REASON_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    NAME_ varchar(255),
    primary key (ID_),
    unique (PROC_INST_ID_)
);

create table ACT_HI_ACTINST (
    ID_ varchar(64) not null,
    PROC_DEF_ID_ varchar(64) not null,
    PROC_INST_ID_ varchar(64) not null,
    EXECUTION_ID_ varchar(64) not null,
    ACT_ID_ varchar(255) not null,
    TASK_ID_ varchar(64),
    CALL_PROC_INST_ID_ varchar(64),
    ACT_NAME_ varchar(255),
    ACT_TYPE_ varchar(255) not null,
    ASSIGNEE_ varchar(255),
    START_TIME_ timestamp not null,
    END_TIME_ timestamp,
    DURATION_ bigint,
    DELETE_REASON_ varchar(4000),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
);

create table ACT_HI_TASKINST (
    ID_ varchar(64) not null,
    PROC_DEF_ID_ varchar(64),
    TASK_DEF_KEY_ varchar(255),
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    NAME_ varchar(255),
    PARENT_TASK_ID_ varchar(64),
    DESCRIPTION_ varchar(4000),
    OWNER_ varchar(255),
    ASSIGNEE_ varchar(255),
    START_TIME_ timestamp not null,
    CLAIM_TIME_ timestamp,
    END_TIME_ timestamp,
    DURATION_ bigint,
    DELETE_REASON_ varchar(4000),
    PRIORITY_ integer,
    DUE_DATE_ timestamp,
    FORM_KEY_ varchar(255),
    CATEGORY_ varchar(255),
    TENANT_ID_ varchar(255) default '',
    primary key (ID_)
);

create table ACT_HI_VARINST (
    ID_ varchar(64) not null,
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    TASK_ID_ varchar(64),
    NAME_ varchar(255) not null,
    VAR_TYPE_ varchar(100),
    REV_ integer,
    BYTEARRAY_ID_ varchar(64),
    DOUBLE_ double precision,
    LONG_ bigint,
    TEXT_ varchar(4000),
    TEXT2_ varchar(4000),
    CREATE_TIME_ timestamp,
    LAST_UPDATED_TIME_ timestamp,
    primary key (ID_)
);

create table ACT_HI_DETAIL (
    ID_ varchar(64) not null,
    TYPE_ varchar(255) not null,
    PROC_INST_ID_ varchar(64),
    EXECUTION_ID_ varchar(64),
    TASK_ID_ varchar(64),
    ACT_INST_ID_ varchar(64),
    NAME_ varchar(255) not null,
    VAR_TYPE_ varchar(64),
    REV_ integer,
    TIME_ timestamp not null,
    BYTEARRAY_ID_ varchar(64),
    DOUBLE_ double precision,
    LONG_ bigint,
    TEXT_ varchar(4000),
    TEXT2_ varchar(4000),
    primary key (ID_)
);

create table ACT_HI_COMMENT (
    ID_ varchar(64) not null,
    TYPE_ varchar(255),
    TIME_ timestamp not null,
    USER_ID_ varchar(255),
    TASK_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    ACTION_ varchar(255),
    MESSAGE_ varchar(4000),
    FULL_MSG_ bytea,
    primary key (ID_)
);

create table ACT_HI_ATTACHMENT (
    ID_ varchar(64) not null,
    REV_ integer,
    USER_ID_ varchar(255),
    NAME_ varchar(255),
    DESCRIPTION_ varchar(4000),
    TYPE_ varchar(255),
    TASK_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    URL_ varchar(4000),
    CONTENT_ID_ varchar(64),
    TIME_ timestamp,
    primary key (ID_)
);

create table ACT_HI_IDENTITYLINK (
    ID_ varchar(64),
    GROUP_ID_ varchar(255),
    TYPE_ varchar(255),
    USER_ID_ varchar(255),
    TASK_ID_ varchar(64),
    PROC_INST_ID_ varchar(64),
    primary key (ID_)
);


create index ACT_IDX_HI_PRO_INST_END on ACT_HI_PROCINST(END_TIME_);
create index ACT_IDX_HI_PRO_I_BUSKEY on ACT_HI_PROCINST(BUSINESS_KEY_);
create index ACT_IDX_HI_ACT_INST_START on ACT_HI_ACTINST(START_TIME_);
create index ACT_IDX_HI_ACT_INST_END on ACT_HI_ACTINST(END_TIME_);
create index ACT_IDX_HI_DETAIL_PROC_INST on ACT_HI_DETAIL(PROC_INST_ID_);
create index ACT_IDX_HI_DETAIL_ACT_INST on ACT_HI_DETAIL(ACT_INST_ID_);
create index ACT_IDX_HI_DETAIL_TIME on ACT_HI_DETAIL(TIME_);
create index ACT_IDX_HI_DETAIL_NAME on ACT_HI_DETAIL(NAME_);
create index ACT_IDX_HI_DETAIL_TASK_ID on ACT_HI_DETAIL(TASK_ID_);
create index ACT_IDX_HI_PROCVAR_PROC_INST on ACT_HI_VARINST(PROC_INST_ID_);
create index ACT_IDX_HI_PROCVAR_NAME_TYPE on ACT_HI_VARINST(NAME_, VAR_TYPE_);
create index ACT_IDX_HI_PROCVAR_TASK_ID on ACT_HI_VARINST(TASK_ID_);
create index ACT_IDX_HI_ACT_INST_PROCINST on ACT_HI_ACTINST(PROC_INST_ID_, ACT_ID_);
create index ACT_IDX_HI_ACT_INST_EXEC on ACT_HI_ACTINST(EXECUTION_ID_, ACT_ID_);
create index ACT_IDX_HI_IDENT_LNK_USER on ACT_HI_IDENTITYLINK(USER_ID_);
create index ACT_IDX_HI_IDENT_LNK_TASK on ACT_HI_IDENTITYLINK(TASK_ID_);
create index ACT_IDX_HI_IDENT_LNK_PROCINST on ACT_HI_IDENTITYLINK(PROC_INST_ID_);
create index ACT_IDX_HI_TASK_INST_PROCINST on ACT_HI_TASKINST(PROC_INST_ID_);

5.在db.drop目录中创建删除数据库表的文件

5.1在drop目录中创建删除数据库表的文件 activiti.kingbase.drop.engine.sql

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
drop table if exists ACT_GE_PROPERTY cascade;
drop table if exists ACT_GE_BYTEARRAY cascade;
drop table if exists ACT_RE_DEPLOYMENT cascade;
drop table if exists ACT_RE_MODEL cascade;
drop table if exists ACT_RE_PROCDEF cascade;
drop table if exists ACT_RU_EXECUTION cascade;
drop table if exists ACT_RU_JOB cascade;
drop table if exists ACT_RU_TIMER_JOB cascade;
drop table if exists ACT_RU_SUSPENDED_JOB cascade;
drop table if exists ACT_RU_DEADLETTER_JOB cascade;
drop table if exists ACT_RU_TASK cascade;
drop table if exists ACT_RU_IDENTITYLINK cascade;
drop table if exists ACT_RU_INTEGRATION cascade;
drop table if exists ACT_RU_VARIABLE cascade;
drop table if exists ACT_RU_EVENT_SUBSCR cascade;
drop table if exists ACT_EVT_LOG cascade;
drop table if exists ACT_PROCDEF_INFO cascade;

5.2在drop目录中创建删除数据库表的文件 activiti.kingbase.drop.history.sql

1
2
3
4
5
6
7
8
drop table if exists ACT_HI_PROCINST cascade;
drop table if exists ACT_HI_ACTINST cascade;
drop table if exists ACT_HI_VARINST cascade;
drop table if exists ACT_HI_TASKINST cascade;
drop table if exists ACT_HI_DETAIL cascade;
drop table if exists ACT_HI_COMMENT cascade;
drop table if exists ACT_HI_ATTACHMENT cascade;
drop table if exists ACT_HI_IDENTITYLINK cascade;

6.在db.properties目录中追加数据库相关配置文件

6.1在properties目录中追加人大金仓数据库配置文件kingbase.properties

1
2
limitAfter=LIMIT #{maxResults} OFFSET #{firstResult}
blobType=BINARY

7.替换activiti-engine-7.1.0.M6.jar

7.1编译项目

完成上述步骤之后，点击红框编译项目
完成上述步骤之后，点击红框编译项目

7.2打包项目

点击红框打包项目，打成可执行的jar包文件，路径在项目的target目录中
点击红框打包项目，打成可执行的jar包文件，路径在项目的target目录中

7.3把项目注进maven仓库中

  • 这里只介绍注进本地maven仓库中，如果你有maven私库，这一步请按照你自己的方法打进私库。
  • 进入命令行终端，cd到你项目的target目录下，执行下面的命令
    1
    mvn install:install-file -DgroupId=org.activiti -DartifactId=activiti-engine -Dversion=7.1.0.M6 -Dpackaging=jar -Dfile=activiti-engine-7.1.0.M6.jar
Tang-xc

Tang-xc

昨日之深渊，今日之浅谈。路虽远，行则将至。事虽难，做则可成。

9
2
3
NOTICE

万事胜意

CATEGORYS
TAGS
965 996 延寿
